Runva EWX12000U 12V Winch – 12,000lb with Synthetic Rope

Runva EWX12000U 12V Winch – 12,000lb with Synthetic Rope

The Runva EWX12000U 12V Winch delivers serious recovery performance with a powerful 12,000lb (5,443kg) rated line pull, making it ideal for 4x4 vehicles, overlanding builds, recovery trucks, and heavy‑duty off‑road applications.

Built with a high‑performance series‑wound motor and robust 230:1 gear reduction system, this winch is engineered for reliability, strength, and smooth operation in demanding recovery situations.

Performance Specifications

• Rated Line Pull: 12,000 lbs (5,443 kg)

• Motor Type: Series Wound (12V)

• Gear Reduction Ratio: 230:1

• Synthetic Rope: 11mm × 25m

• Drum Size: 63mm × 217mm

• Mounting Bolt Pattern: 254mm × 114.3mm (10" × 4.5") – 4 × M10

• Net Weight: 38kg

Line Speed & Current (12V – First Layer)

• 0 lbs – 6.8 m/min – 100A

• 4,000 lbs – 4.0 m/min – 220A

• 8,000 lbs – 3.0 m/min – 330A

• 12,000 lbs – 1.8 m/min – 450A

Key Features

• Heavy‑Duty 12V Motor

• High-Strength Synthetic Rope

• Aluminium Hawse Fairlead

• Wireless Remote (IP67 Rated)

• Wired Remote Control

• Integrated Isolator (Cut-Off) Switch

• Heavy-Duty Cast Iron Hook

• Durable, Weather-Resistant Construction

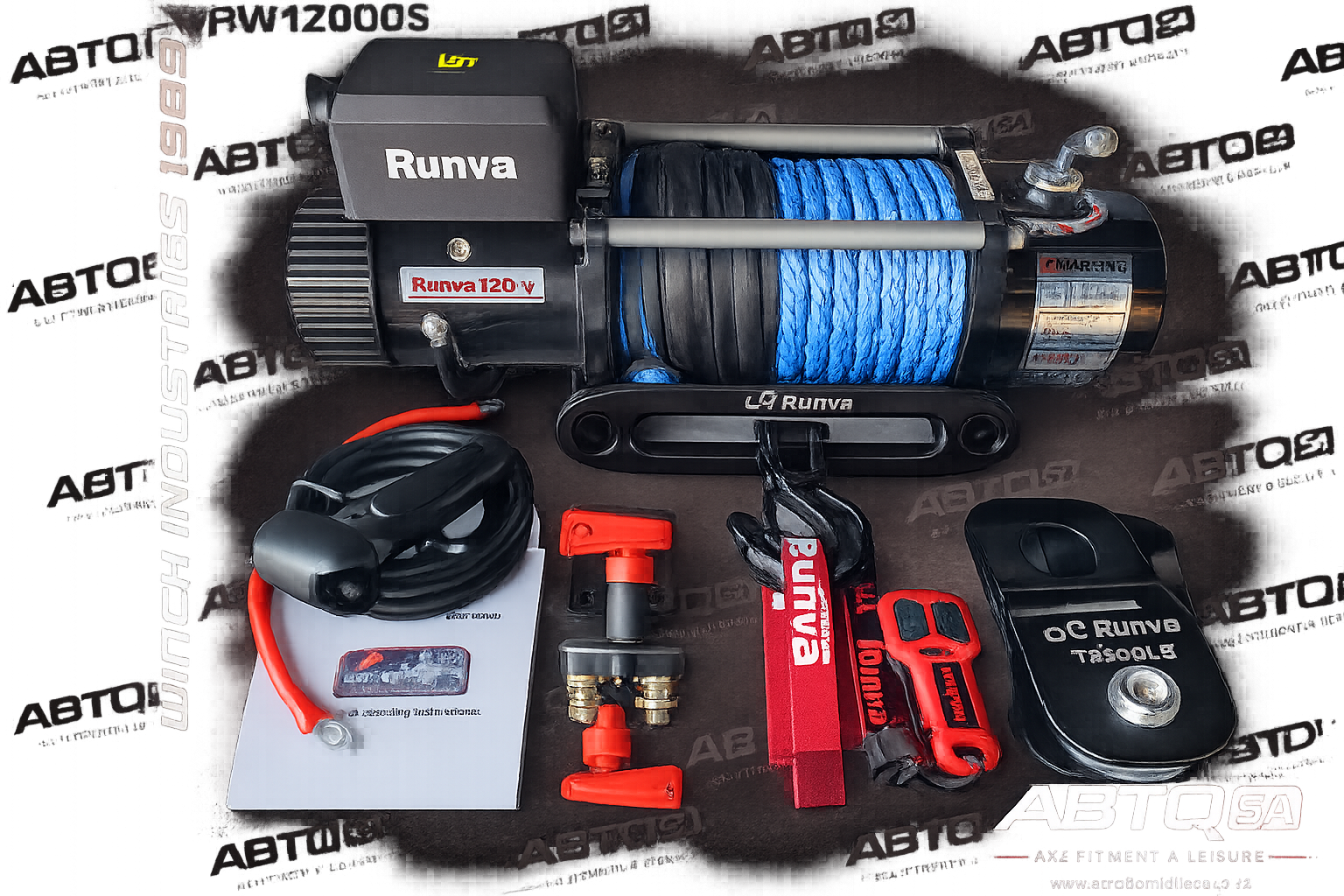

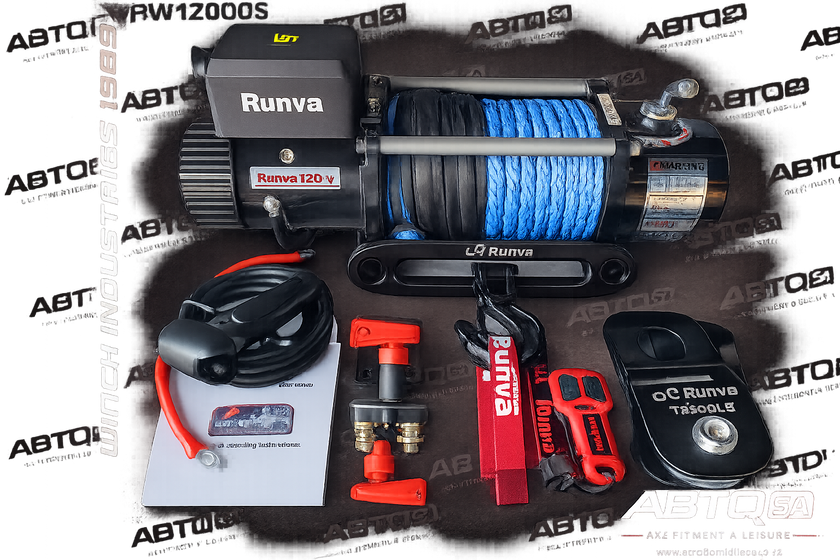

What’s Included

• 1 × Runva EWX12000U Winch

• 1 × Synthetic Rope

• 1 × Aluminium Hawse Fairlead

• 1 × Cast Iron Hook

• 1 × Wired Remote

• 1 × Wireless Remote (IP67 Rated)

• 1 × Isolator Switch

• 1 × Snatch Block

• 1 × Instruction Manual

Ideal For

• 4×4 Recovery Vehicles

• Overlanding & Touring Builds

• Utility & Work Vehicles

• Serious Off‑Road Enthusiasts

Built for strength, reliability, and serious recovery performance, the Runva 12,000lb Synthetic Winch is an essential upgrade for any properly equipped 4x4.
